This plastic cup thermoforming machine enables efficient mass production by heating plastic sheets and using vacuum pressure to form precise, consistent cups.

This machine ensures smooth, accurate forming with minimal labor. Ideal for the food and beverage industry, it delivers reliable, efficient performance with custom molding.

• The whole machine adopts PLC control system, has the characteristics of stable operation, high efficiency, energy saving etc
• All the process include feeding, forming, punching, shearing, stacking adopt advanced hydraulic, electric and pneumatic control technology.
• Modular type rail chain with cooling water channel inside.
  It has many advantages, such as high speed,high precision, low noise, and non-pollusion etc.
• Servo motor driving method is also optional

High-Efficiency Automatic Production

With a production speed of up to 35 cycles per minute, the machine supports continuous plastic cup manufacturing with less manual handling. This helps increase daily output, reduce labor requirements, and improve overall production efficiency.

Stable Hydraulic Forming

The hydraulic system provides consistent forming pressure during each cycle, helping produce cups with uniform shapes, clear contours, and stable dimensions. Reliable pressure control also reduces defects and improves batch consistency.

Large and Flexible Forming Capacity

Forming areas range from 660 × 300 mm to 800 × 550 mm, with a maximum forming height of up to 280 mm. This allows the machine to handle multi-cavity molds and produce different cups, bowls, lids, and plastic containers.

Uniform Heating and Reduced Material Waste

Heating power of up to 135 kW supports fast and even plastic sheet heating. Stable temperature distribution helps prevent incomplete forming, uneven stretching, and excessive scrap, improving both product quality and material utilization.

Heavy-Duty Design for Long-Term Operation

The robust machine structure provides stability during high-speed forming and cutting. Reduced vibration helps maintain processing accuracy, minimize mechanical wear, and support reliable performance during extended production runs.

Heating ：The process starts by heating plastic sheets to the required forming temperature. The heated sheet becomes flexible, allowing it to be shaped accurately during the forming process.

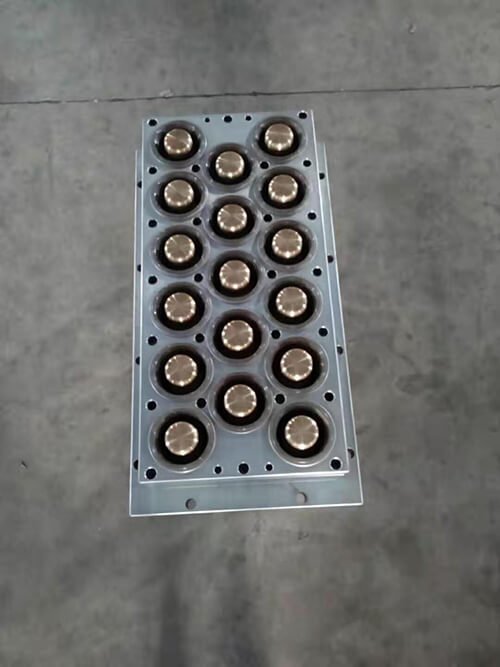

Cup Forming ：After heating, the softened plastic sheet is formed into cup shapes using a hydraulic forming system. Stable forming pressure helps achieve consistent shapes, accurate dimensions, and reliable product quality.

Cutting and Transfer ：After forming, the cups are separated through the cutting process and automatically transferred to the stacking station. Automated transfer reduces manual handling and improves production efficiency.

Stacking and Collection： The finished cups are automatically stacked for easier packaging and transportation. This continuous operation helps manufacturers maintain stable output for large-scale production.

This machine is suitable for producing a wide range of thermoformed plastic packaging products for the food, beverage, and takeaway industries. By changing the mold and production settings, manufacturers can produce different cups, containers, lids, and packaging items.

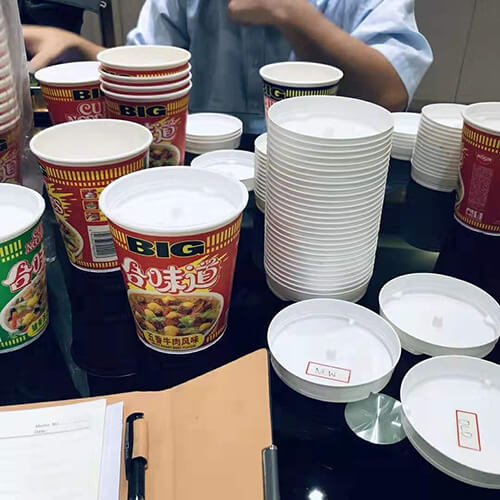

Plastic Cups

Suitable for producing milk cups, jelly cups, yogurt cups, water cups, and disposable drinking cups for food and beverage packaging.

Food Containers

The machine can manufacture instant noodle bowls, ice cream bowls, soup bowls, and other food containers with consistent shapes and wall thickness.

Lids and Covers

It can be configured to produce beverage lids, food packaging covers, and takeaway container lids in different sizes and designs.

Other Packaging Products

Additional applications include plastic trays, plates, dishes, clamshell boxes, and other thermoformed packaging products used in retail, catering, and food distribution.
